viskores::rendering::Mapper Class Reference

Converts data into commands to a rendering system. More...

#include <Mapper.h>

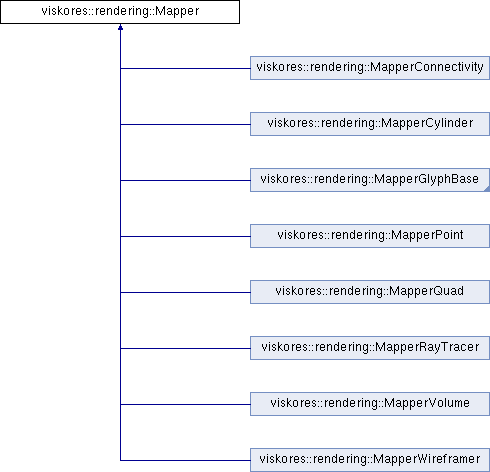

Inheritance diagram for viskores::rendering::Mapper:

Public Member Functions
	Mapper ()
virtual	~Mapper ()
virtual void	RenderCells (const viskores::cont::UnknownCellSet &cellset, const viskores::cont::CoordinateSystem &coords, const viskores::cont::Field &scalarField, const viskores::cont::ColorTable &colorTable, const viskores::rendering::Camera &camera, const viskores::Range &scalarRange)
void	RenderCells (const viskores::cont::UnknownCellSet &cellset, const viskores::cont::CoordinateSystem &coords, const viskores::cont::Field &scalarField, const viskores::cont::ColorTable &colorTable, const viskores::rendering::Camera &camera, const viskores::Range &scalarRange, const viskores::cont::Field &ghostField)
virtual void	RenderCellsPartitioned (const viskores::cont::PartitionedDataSet partitionedData, const std::string fieldName, const viskores::cont::ColorTable &colorTable, const viskores::rendering::Camera &camera, const viskores::Range &scalarRange)
virtual void	SetActiveColorTable (const viskores::cont::ColorTable &ct)
virtual void	SetCanvas (viskores::rendering::Canvas *canvas)=0
virtual viskores::rendering::Canvas *	GetCanvas () const =0
virtual viskores::rendering::Mapper *	NewCopy () const =0
virtual void	SetLogarithmX (bool l)
virtual void	SetLogarithmY (bool l)

Protected Member Functions
virtual void	RenderCellsImpl (const viskores::cont::UnknownCellSet &cellset, const viskores::cont::CoordinateSystem &coords, const viskores::cont::Field &scalarField, const viskores::cont::ColorTable &colorTable, const viskores::rendering::Camera &camera, const viskores::Range &scalarRange, const viskores::cont::Field &ghostField)=0

Protected Attributes
viskores::cont::ArrayHandle< viskores::Vec4f_32 >	ColorMap
bool	LogarithmX = false
bool	LogarithmY = false
bool	SortBackToFront = true

Detailed Description

Converts data into commands to a rendering system.

This is the base class for all mapper classes in Viskores. Different concrete derived classes can provide different representations and rendering techniques.

Constructor & Destructor Documentation

Mapper()

viskores::rendering::Mapper::Mapper ( )

inline

~Mapper()

virtual viskores::rendering::Mapper::~Mapper ( )

virtual

Member Function Documentation

GetCanvas()

virtual viskores::rendering::Canvas* viskores::rendering::Mapper::GetCanvas ( ) const

pure virtual

Implemented in viskores::rendering::MapperGlyphBase, viskores::rendering::MapperQuad, viskores::rendering::MapperWireframer, viskores::rendering::MapperCylinder, viskores::rendering::MapperPoint, viskores::rendering::MapperRayTracer, viskores::rendering::MapperConnectivity, and viskores::rendering::MapperVolume.

NewCopy()

virtual viskores::rendering::Mapper* viskores::rendering::Mapper::NewCopy ( ) const

pure virtual

Implemented in viskores::rendering::MapperPoint, viskores::rendering::MapperCylinder, viskores::rendering::MapperWireframer, viskores::rendering::MapperQuad, viskores::rendering::MapperRayTracer, viskores::rendering::MapperGlyphVector, viskores::rendering::MapperGlyphScalar, viskores::rendering::MapperConnectivity, and viskores::rendering::MapperVolume.

RenderCells() [1/2]

virtual void viskores::rendering::Mapper::RenderCells ( const viskores::cont::UnknownCellSet &  cellset, const viskores::cont::CoordinateSystem &  coords, const viskores::cont::Field &  scalarField, const viskores::cont::ColorTable &  colorTable, const viskores::rendering::Camera &  camera, const viskores::Range &  scalarRange  )

virtual

RenderCells() [2/2]

void viskores::rendering::Mapper::RenderCells	(	const viskores::cont::UnknownCellSet &	cellset,
		const viskores::cont::CoordinateSystem &	coords,
		const viskores::cont::Field &	scalarField,
		const viskores::cont::ColorTable &	colorTable,
		const viskores::rendering::Camera &	camera,
		const viskores::Range &	scalarRange,
		const viskores::cont::Field &	ghostField
	)

RenderCellsImpl()

virtual void viskores::rendering::Mapper::RenderCellsImpl ( const viskores::cont::UnknownCellSet &  cellset, const viskores::cont::CoordinateSystem &  coords, const viskores::cont::Field &  scalarField, const viskores::cont::ColorTable &  colorTable, const viskores::rendering::Camera &  camera, const viskores::Range &  scalarRange, const viskores::cont::Field &  ghostField  )

protectedpure virtual

Implemented in viskores::rendering::MapperPoint, viskores::rendering::MapperCylinder, viskores::rendering::MapperWireframer, viskores::rendering::MapperQuad, viskores::rendering::MapperRayTracer, viskores::rendering::MapperGlyphVector, viskores::rendering::MapperGlyphScalar, viskores::rendering::MapperVolume, and viskores::rendering::MapperConnectivity.

RenderCellsPartitioned()

virtual void viskores::rendering::Mapper::RenderCellsPartitioned ( const viskores::cont::PartitionedDataSet  partitionedData, const std::string  fieldName, const viskores::cont::ColorTable &  colorTable, const viskores::rendering::Camera &  camera, const viskores::Range &  scalarRange  )

virtual

SetActiveColorTable()

virtual void viskores::rendering::Mapper::SetActiveColorTable ( const viskores::cont::ColorTable &  ct )

virtual

SetCanvas()

virtual void viskores::rendering::Mapper::SetCanvas ( viskores::rendering::Canvas *  canvas )

pure virtual

Implemented in viskores::rendering::MapperWireframer, viskores::rendering::MapperGlyphBase, viskores::rendering::MapperQuad, viskores::rendering::MapperPoint, viskores::rendering::MapperCylinder, viskores::rendering::MapperRayTracer, viskores::rendering::MapperConnectivity, and viskores::rendering::MapperVolume.

SetLogarithmX()

virtual void viskores::rendering::Mapper::SetLogarithmX ( bool  l )

virtual

SetLogarithmY()

virtual void viskores::rendering::Mapper::SetLogarithmY ( bool  l )

virtual

Member Data Documentation

ColorMap

viskores::cont::ArrayHandle<viskores::Vec4f_32> viskores::rendering::Mapper::ColorMap

protected

LogarithmX

bool viskores::rendering::Mapper::LogarithmX = false

protected

LogarithmY

bool viskores::rendering::Mapper::LogarithmY = false

protected

SortBackToFront

bool viskores::rendering::Mapper::SortBackToFront = true

protected

---

The documentation for this class was generated from the following file:

• Mapper.h
