viskores::cont::CellLocatorBase Class Reference

Base class for all CellLocator classes. More...

#include <CellLocatorBase.h>

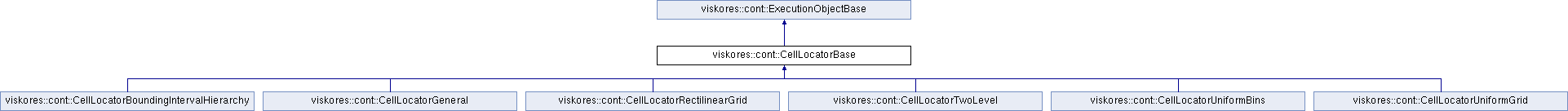

Inheritance diagram for viskores::cont::CellLocatorBase:

Public Member Functions
virtual	~CellLocatorBase ()=default
const viskores::cont::UnknownCellSet &	GetCellSet () const
	Specify the CellSet defining the structure of the cells being searched. More...
void	SetCellSet (const viskores::cont::UnknownCellSet &cellSet)
	Specify the CellSet defining the structure of the cells being searched. More...
const viskores::cont::CoordinateSystem &	GetCoordinates () const
	Specify the CoordinateSystem defining the location of the cells. More...
void	SetCoordinates (const viskores::cont::CoordinateSystem &coords)
	Specify the CoordinateSystem defining the location of the cells. More...
void	SetCoordinates (const viskores::cont::UnknownArrayHandle &coords)
	Specify the CoordinateSystem defining the location of the cells. More...
void	Update () const
	Build the search structure used to look up cells. More...

Protected Member Functions
void	SetModified ()
bool	GetModified () const
virtual void	Build ()=0

Private Attributes
viskores::cont::UnknownCellSet	CellSet
viskores::cont::CoordinateSystem	Coords
bool	Modified = true

Detailed Description

Base class for all CellLocator classes.

CellLocatorBase subclasses must implement the pure virtual Build() method. They also must provide a PrepareForExecution() method to satisfy the ExecutionObjectBase superclass.

If a derived class changes its state in a way that invalidates its internal search structure, it should call the protected SetModified() method. This will alert the base class to rebuild the structure on the next call to Update().

Constructor & Destructor Documentation

~CellLocatorBase()

virtual viskores::cont::CellLocatorBase::~CellLocatorBase ( )

virtualdefault

Member Function Documentation

Build()

virtual void viskores::cont::CellLocatorBase::Build ( )

protectedpure virtual

Implemented in viskores::cont::CellLocatorBoundingIntervalHierarchy, viskores::cont::CellLocatorTwoLevel, viskores::cont::CellLocatorUniformBins, viskores::cont::CellLocatorGeneral, viskores::cont::CellLocatorRectilinearGrid, and viskores::cont::CellLocatorUniformGrid.

GetCellSet()

const viskores::cont::UnknownCellSet& viskores::cont::CellLocatorBase::GetCellSet ( ) const

inline

Specify the CellSet defining the structure of the cells being searched.

This is typically retrieved from the viskores::cont::DataSet::GetCellSet() method.

GetCoordinates()

const viskores::cont::CoordinateSystem& viskores::cont::CellLocatorBase::GetCoordinates ( ) const

inline

Specify the CoordinateSystem defining the location of the cells.

This is typically retrieved from the viskores::cont::DataSet::GetCoordinateSystem() method.

GetModified()

bool viskores::cont::CellLocatorBase::GetModified ( ) const

inlineprotected

SetCellSet()

void viskores::cont::CellLocatorBase::SetCellSet ( const viskores::cont::UnknownCellSet &  cellSet )

inline

Specify the CellSet defining the structure of the cells being searched.

This is typically retrieved from the viskores::cont::DataSet::GetCellSet() method.

SetCoordinates() [1/2]

void viskores::cont::CellLocatorBase::SetCoordinates ( const viskores::cont::CoordinateSystem &  coords )

inline

Specify the CoordinateSystem defining the location of the cells.

This is typically retrieved from the viskores::cont::DataSet::GetCoordinateSystem() method.

SetCoordinates() [2/2]

void viskores::cont::CellLocatorBase::SetCoordinates ( const viskores::cont::UnknownArrayHandle &  coords )

inline

Specify the CoordinateSystem defining the location of the cells.

This is typically retrieved from the viskores::cont::DataSet::GetCoordinateSystem() method.

SetModified()

void viskores::cont::CellLocatorBase::SetModified ( )

inlineprotected

Update()

void viskores::cont::CellLocatorBase::Update

(

)

const

Build the search structure used to look up cells.

This method must be called after the cells and coordiantes are specified with SetCellSet() and SetCoordinates(), respectively. The method must also be called before it is used with a worklet. Before building the search structure Update() checks to see if the structure is already built and up to date. If so, the method quickly returns. Thus, it is good practice to call Update() before each use in a worklet.

Although Update() is called from the control environment, it lauches jobs in the execution environment to quickly build the search structure.

Member Data Documentation

CellSet

viskores::cont::UnknownCellSet viskores::cont::CellLocatorBase::CellSet

private

Coords

viskores::cont::CoordinateSystem viskores::cont::CellLocatorBase::Coords

private

Modified

bool viskores::cont::CellLocatorBase::Modified = true

mutableprivate

---

The documentation for this class was generated from the following file:

• CellLocatorBase.h
