ArrayHandleUniformPointCoordinates is a specialization of ArrayHandle. More...

#include <ArrayHandleUniformPointCoordinates.h>

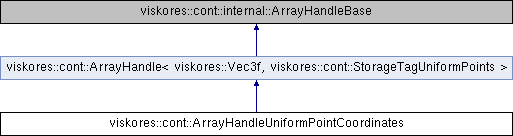

Inheritance diagram for viskores::cont::ArrayHandleUniformPointCoordinates:

Public Types
using	Thisclass = viskores::cont::detail::GetTypeInParentheses< void(ArrayHandleUniformPointCoordinates) >::type

using	Superclass = viskores::cont::detail::GetTypeInParentheses< void(viskores::cont::ArrayHandle< viskores::Vec3f, viskores::cont::StorageTagUniformPoints >) >::type

using	ValueType = Superclass::ValueType

using	StorageTag = Superclass::StorageTag

using	StorageType = Superclass::StorageType

using	ReadPortalType = Superclass::ReadPortalType

using	WritePortalType = Superclass::WritePortalType

Public Types inherited from viskores::cont::ArrayHandle< viskores::Vec3f, viskores::cont::StorageTagUniformPoints >
using	ValueType = viskores::Vec3f

using	StorageTag = viskores::cont::StorageTagUniformPoints

using	StorageType = viskores::cont::internal::Storage< ValueType, StorageTag >

using	ReadPortalType = typename StorageType::ReadPortalType
	The type of portal used when accessing data in a read-only mode. More...

using	WritePortalType = typename StorageType::WritePortalType
	The type of portal used when accessing data in a read-write mode. More...

Public Member Functions
	ArrayHandleUniformPointCoordinates ()

VISKORES_CONT	ArrayHandleUniformPointCoordinates (const Thisclass &src)

VISKORES_CONT	ArrayHandleUniformPointCoordinates (Thisclass &&src) noexcept

VISKORES_CONT	ArrayHandleUniformPointCoordinates (const viskores::cont::ArrayHandle< Superclass::ValueType, Superclass::StorageTag > &src)

VISKORES_CONT	ArrayHandleUniformPointCoordinates (viskores::cont::ArrayHandle< Superclass::ValueType, Superclass::StorageTag > &&src) noexcept

VISKORES_CONT	ArrayHandleUniformPointCoordinates (const std::vector< viskores::cont::internal::Buffer > &buffers)

VISKORES_CONT	ArrayHandleUniformPointCoordinates (std::vector< viskores::cont::internal::Buffer > &&buffers) noexcept

VISKORES_CONT Thisclass &	operator= (const Thisclass &src)

VISKORES_CONT Thisclass &	operator= (Thisclass &&src) noexcept

	ArrayHandleUniformPointCoordinates (viskores::Id3 dimensions, ValueType origin=ValueType(0.0f, 0.0f, 0.0f), ValueType spacing=ValueType(1.0f, 1.0f, 1.0f))
	Create an `ArrayHandleUniformPointCoordinates` with the given specifications. More...

	~ArrayHandleUniformPointCoordinates ()

viskores::Id3	GetDimensions () const
	Get the number of points of the uniform grid in the x, y, and z directions. More...

viskores::Vec3f	GetOrigin () const
	Get the coordinates of the "lower-left" cornder of the mesh. More...

viskores::Vec3f	GetSpacing () const
	Get the spacing between points of the grid in the x, y, and z directions. More...

Public Member Functions inherited from viskores::cont::ArrayHandle< viskores::Vec3f, viskores::cont::StorageTagUniformPoints >
	ArrayHandle ()
	Constructs an empty ArrayHandle. More...

	ArrayHandle (const viskores::cont::ArrayHandle< ValueType, StorageTag > &src)
	Copy constructor. More...

	ArrayHandle (viskores::cont::ArrayHandle< ValueType, StorageTag > &&src) noexcept
	Move constructor. More...

	ArrayHandle (const std::vector< viskores::cont::internal::Buffer > &buffers)
	Special constructor for subclass specializations that need to set the initial state array. More...

	ArrayHandle (std::vector< viskores::cont::internal::Buffer > &&buffers) noexcept
	Special constructor for subclass specializations that need to set the initial state array. More...

	~ArrayHandle ()
	Destructs an empty ArrayHandle. More...

viskores::cont::ArrayHandle< ValueType, StorageTag > &	operator= (const viskores::cont::ArrayHandle< ValueType, StorageTag > &src)
	Shallow copies an ArrayHandle. More...

viskores::cont::ArrayHandle< ValueType, StorageTag > &	operator= (viskores::cont::ArrayHandle< ValueType, StorageTag > &&src) noexcept
	Move and Assignment of an ArrayHandle. More...

bool	operator== (const ArrayHandle< ValueType, StorageTag > &rhs) const
	Like a pointer, two `ArrayHandle`s are considered equal if they point to the same location in memory. More...

bool	operator== (const ArrayHandle< VT, ST > &) const

bool	operator!= (const ArrayHandle< ValueType, StorageTag > &rhs) const

bool	operator!= (const ArrayHandle< VT, ST > &) const

StorageType	GetStorage () const
	Get the storage. More...

ReadPortalType	ReadPortal () const
	Get an array portal that can be used in the control environment. More...

ReadPortalType	ReadPortal (viskores::cont::Token &token) const
	The type of portal used when accessing data in a read-only mode. More...

WritePortalType	WritePortal () const
	Get an array portal that can be used in the control environment. More...

WritePortalType	WritePortal (viskores::cont::Token &token) const
	Get an array portal that can be used in the control environment. More...

viskores::Id	GetNumberOfValues () const
	Returns the number of entries in the array. More...

viskores::IdComponent	GetNumberOfComponentsFlat () const
	Returns the total number of components for each value in the array. More...

void	Allocate (viskores::Id numberOfValues, viskores::CopyFlag preserve, viskores::cont::Token &token) const
	Allocates an array large enough to hold the given number of values. More...

void	Allocate (viskores::Id numberOfValues, viskores::CopyFlag preserve=viskores::CopyFlag::Off) const
	Allocates an array large enough to hold the given number of values. More...

void	AllocateAndFill (viskores::Id numberOfValues, const ValueType &fillValue, viskores::CopyFlag preserve, viskores::cont::Token &token) const
	Allocates an array and fills it with an initial value. More...

void	AllocateAndFill (viskores::Id numberOfValues, const ValueType &fillValue, viskores::CopyFlag preserve=viskores::CopyFlag::Off) const
	Allocates an array and fills it with an initial value. More...

void	Fill (const ValueType &fillValue, viskores::Id startIndex, viskores::Id endIndex, viskores::cont::Token &token) const
	Fills the array with a given value. More...

void	Fill (const ValueType &fillValue, viskores::Id startIndex, viskores::Id endIndex) const
	Fills the array with a given value. More...

void	Fill (const ValueType &fillValue, viskores::Id startIndex=0) const
	Fills the array with a given value. More...

void	ReleaseResourcesExecution () const
	Releases any resources being used in the execution environment (that are not being shared by the control environment). More...

void	ReleaseResources () const
	Releases all resources in both the control and execution environments. More...

ReadPortalType	PrepareForInput (viskores::cont::DeviceAdapterId device, viskores::cont::Token &token) const
	Prepares this array to be used as an input to an operation in the execution environment. More...

WritePortalType	PrepareForInPlace (viskores::cont::DeviceAdapterId device, viskores::cont::Token &token) const
	Prepares this array to be used in an in-place operation (both as input and output) in the execution environment. More...

WritePortalType	PrepareForOutput (viskores::Id numberOfValues, viskores::cont::DeviceAdapterId device, viskores::cont::Token &token) const
	Prepares (allocates) this array to be used as an output from an operation in the execution environment. More...

bool	IsOnDevice (viskores::cont::DeviceAdapterId device) const
	Returns true if the ArrayHandle's data is on the given device. More...

bool	IsOnHost () const
	Returns true if the ArrayHandle's data is on the host. More...

void	SyncControlArray () const
	Synchronizes the control array with the execution array. More...

void	Enqueue (const viskores::cont::Token &token) const
	Enqueue a token for access to this ArrayHandle. More...

void	DeepCopyFrom (const viskores::cont::ArrayHandle< ValueType, StorageTag > &source) const
	Deep copies the data in the array. More...

const std::vector< viskores::cont::internal::Buffer > &	GetBuffers () const
	Returns the internal `Buffer` structures that hold the data. More...

std::vector< viskores::cont::internal::Buffer > &	GetBuffers ()

Additional Inherited Members
Protected Member Functions inherited from viskores::cont::ArrayHandle< viskores::Vec3f, viskores::cont::StorageTagUniformPoints >
void	SetBuffer (viskores::IdComponent index, const viskores::cont::internal::Buffer &buffer)

void	SetBuffers (const std::vector< viskores::cont::internal::Buffer > &buffers)

void	SetBuffers (std::vector< viskores::cont::internal::Buffer > &&buffers)

Detailed Description

ArrayHandleUniformPointCoordinates is a specialization of ArrayHandle.

It contains the information necessary to compute the point coordinates in a uniform orthogonal grid (extent, origin, and spacing) and implicitly computes these coordinates in its array portal.

Member Typedef Documentation

◆ ReadPortalType

using viskores::cont::ArrayHandleUniformPointCoordinates::ReadPortalType = Superclass::ReadPortalType

◆ StorageTag

using viskores::cont::ArrayHandleUniformPointCoordinates::StorageTag = Superclass::StorageTag

◆ StorageType

using viskores::cont::ArrayHandleUniformPointCoordinates::StorageType = Superclass::StorageType

◆ Superclass

using viskores::cont::ArrayHandleUniformPointCoordinates::Superclass = viskores::cont::detail::GetTypeInParentheses<void (viskores::cont::ArrayHandle<viskores::Vec3f, viskores::cont::StorageTagUniformPoints>) >::type

◆ Thisclass

using viskores::cont::ArrayHandleUniformPointCoordinates::Thisclass = viskores::cont::detail::GetTypeInParentheses<void ( ArrayHandleUniformPointCoordinates ) >::type

◆ ValueType

using viskores::cont::ArrayHandleUniformPointCoordinates::ValueType = Superclass::ValueType

◆ WritePortalType

using viskores::cont::ArrayHandleUniformPointCoordinates::WritePortalType = Superclass::WritePortalType

Constructor & Destructor Documentation

◆ ArrayHandleUniformPointCoordinates() [1/8]

viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( )

inline

◆ ArrayHandleUniformPointCoordinates() [2/8]

VISKORES_CONT viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( const Thisclass & src )

inline

◆ ArrayHandleUniformPointCoordinates() [3/8]

VISKORES_CONT viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( Thisclass && src )

inlinenoexcept

◆ ArrayHandleUniformPointCoordinates() [4/8]

VISKORES_CONT viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( const viskores::cont::ArrayHandle< Superclass::ValueType, Superclass::StorageTag > & src )

inline

◆ ArrayHandleUniformPointCoordinates() [5/8]

VISKORES_CONT viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( viskores::cont::ArrayHandle< Superclass::ValueType, Superclass::StorageTag > && src )

inlinenoexcept

◆ ArrayHandleUniformPointCoordinates() [6/8]

VISKORES_CONT viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( const std::vector< viskores::cont::internal::Buffer > & buffers )

inlineexplicit

◆ ArrayHandleUniformPointCoordinates() [7/8]

VISKORES_CONT viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates ( std::vector< viskores::cont::internal::Buffer > && buffers )

inlineexplicitnoexcept

◆ ArrayHandleUniformPointCoordinates() [8/8]

viskores::cont::ArrayHandleUniformPointCoordinates::ArrayHandleUniformPointCoordinates	(	viskores::Id3	dimensions,
		ValueType	origin = `ValueType(0.0f, 0.0f, 0.0f)`,
		ValueType	spacing = `ValueType(1.0f, 1.0f, 1.0f)`
	)

Create an ArrayHandleUniformPointCoordinates with the given specifications.

◆ ~ArrayHandleUniformPointCoordinates()

viskores::cont::ArrayHandleUniformPointCoordinates::~ArrayHandleUniformPointCoordinates ( )

Member Function Documentation

◆ GetDimensions()

viskores::Id3 viskores::cont::ArrayHandleUniformPointCoordinates::GetDimensions ( ) const

Get the number of points of the uniform grid in the x, y, and z directions.

◆ GetOrigin()

viskores::Vec3f viskores::cont::ArrayHandleUniformPointCoordinates::GetOrigin ( ) const

Get the coordinates of the "lower-left" cornder of the mesh.

◆ GetSpacing()

viskores::Vec3f viskores::cont::ArrayHandleUniformPointCoordinates::GetSpacing ( ) const

Get the spacing between points of the grid in the x, y, and z directions.

◆ operator=() [1/2]

VISKORES_CONT Thisclass& viskores::cont::ArrayHandleUniformPointCoordinates::operator= ( const Thisclass & src )

inline

◆ operator=() [2/2]

VISKORES_CONT Thisclass& viskores::cont::ArrayHandleUniformPointCoordinates::operator= ( Thisclass && src )

inlinenoexcept

The documentation for this class was generated from the following file:

ArrayHandleUniformPointCoordinates.h
